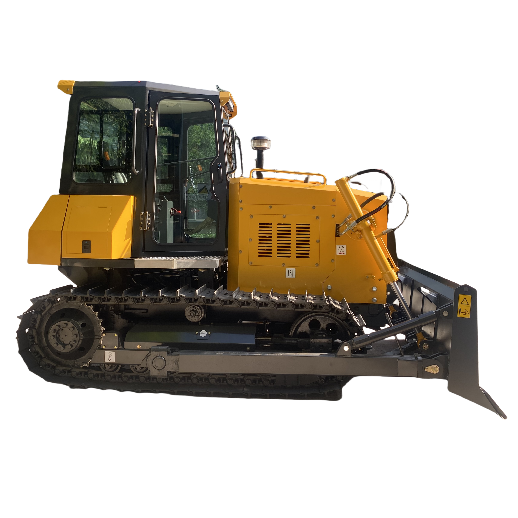

100 HP Hydraulic Crawler Bulldozer

Shanbo SD08 bulldozer is an ideal machine for engineering construction. It adopts semi-rigid suspension, vehicle walking structure, advanced control system, full hydraulic power steering, and is flexible and labor-saving. This machine is suitable for narrow site construction, with flexible operation and high efficiency. Standard heating and ventilation equipment, air conditioning optional. And each maintenance center has humanized design, which improves the convenience of maintenance.

Product Details

In the field of engineering construction, a safe, flexible and efficient equipment is the key to overcome construction problems and ensure project progress. This kind of construction machinery and equipment, starting from the safety of operators and the actual needs of construction, creates all-round advantages and becomes an ideal choice for engineering construction.

Its cab adopts steel welding technology, and high-strength steel is used to build a stable frame, which is formed into an integrated structure through precision welding, with outstanding impact resistance. In the face of unexpected situations such as falling muck and equipment collision on the engineering site, it can effectively resist the impact of external forces, protect the safety of operators, build a solid "safety barrier" for construction, and let operators work with peace of mind.

In view of the difficult problems in the operation of narrow spaces, such as the renovation of the old city and the construction of underground garages, the equipment has a compact layout design, a short wheelbase, a small turning radius, and a flexible operating mechanism, and can easily shuttle through narrow spaces. Without relying on manual or small tools, it can work directly close to the construction edge, greatly reducing the time of position adjustment, improving the efficiency of one-day operation by 3-5 times, and effectively advancing the construction period.

Basic parameters

Performance specifications

Total weight (kg )

7500

Forward 1-4 gear (km/h )

2.4~10.4

Engine model

LR4A3Z-22

Reverse 1-2 gear (km/h )

4.9~8.9

Engine power /speed(kw/ r/min)

70/2200

Land pressure (kPa )

42

Fuel consumption of the

engine(g/km.h )

≤242

Max towing force(kN)

82

Engine max torque (N.m )


414



Dimensions

Operating scope  and   parameters

Overall length( mm )

4020

Blade max lifting height( mm )

736.5

Overall width( mm )

2450

Blade max digging depth( mm )

350

Transport height( mm )

2800

Towing

equipment/Ripper(optional)

Fixed/three-toothed

Bulldozer shovelW  ( mm )

2450

Engine max torque(N.m)

345

Bulldozer shovel  H( mm )

950

Cutting angle(adjustable)

55°

Caterpillar track board width( mm )

400



Basic parameters

Performance specifications

Total weight (kg )

7500

Forward 1-4 gear (km/h )

2.4~10.4

Engine model

LR4A3Z-22

Reverse 1-2 gear (km/h )

4.9~8.9

Engine power /speed(kw/ r/min)

70/2200

Land pressure (kPa )

42

Fuel consumption of the

engine(g/km.h )

≤242

Max towing force(kN)

82

Engine max torque (N.m )


414



Dimensions

Operating scope  and   parameters

Overall length( mm )

4020

Blade max lifting height( mm )

736.5

Overall width( mm )

2450

Blade max digging depth( mm )

350

Transport height( mm )

2800

Towing

equipment/Ripper(optional)

Fixed/three-toothed

Bulldozer shovelW  ( mm )

2450

Engine max torque(N.m)

345

Bulldozer shovel  H( mm )

950

Cutting angle(adjustable)

55°

Caterpillar track board width( mm )

400



In terms of comfort, the equipment comes standard with heating and ventilation system. In winter, the engine coolant heating technology heats up rapidly to dispel the cold; In daily operation, ventilation equipment discharges dust and waste gas in time and introduces fresh air. At the same time, the optional air conditioning scheme is provided to adapt to extreme climate such as high temperature, high humidity and severe cold, so that operators can stay focused in a comfortable environment and reduce operational errors.

Each maintenance point of the equipment adopts humanized design, and the location of the maintenance point is easy to contact, and it is equipped with standardized interfaces and clear marks. Maintenance personnel can quickly complete the work of oil replacement and filter element maintenance without disassembling a large number of parts, which significantly reduces the maintenance difficulty and time cost, and reduces the downtime loss of the equipment.


100 HP Hydraulic Crawler Bulldozer


The whole machine has excellent economy and reliability, and the power system accurately matches the operation requirements, effectively reducing fuel consumption; The quality of core components is excellent, combined with the adaptive design of working conditions, with low failure rate and strong durability. Whether it is a large-scale infrastructure project or a small-scale site construction, this equipment can escort the engineering construction with efficient and reliable performance and become a trusted right-hand man of the construction team.
