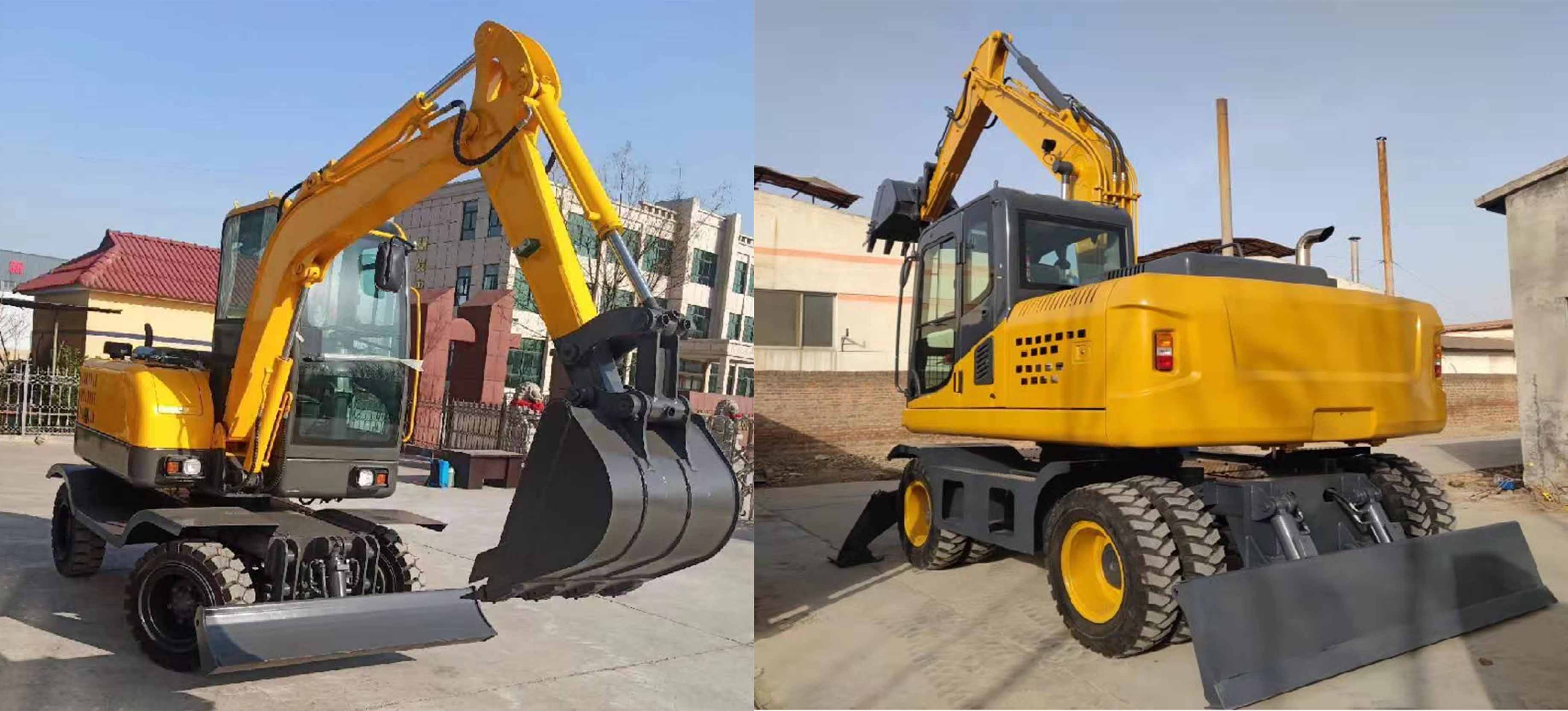

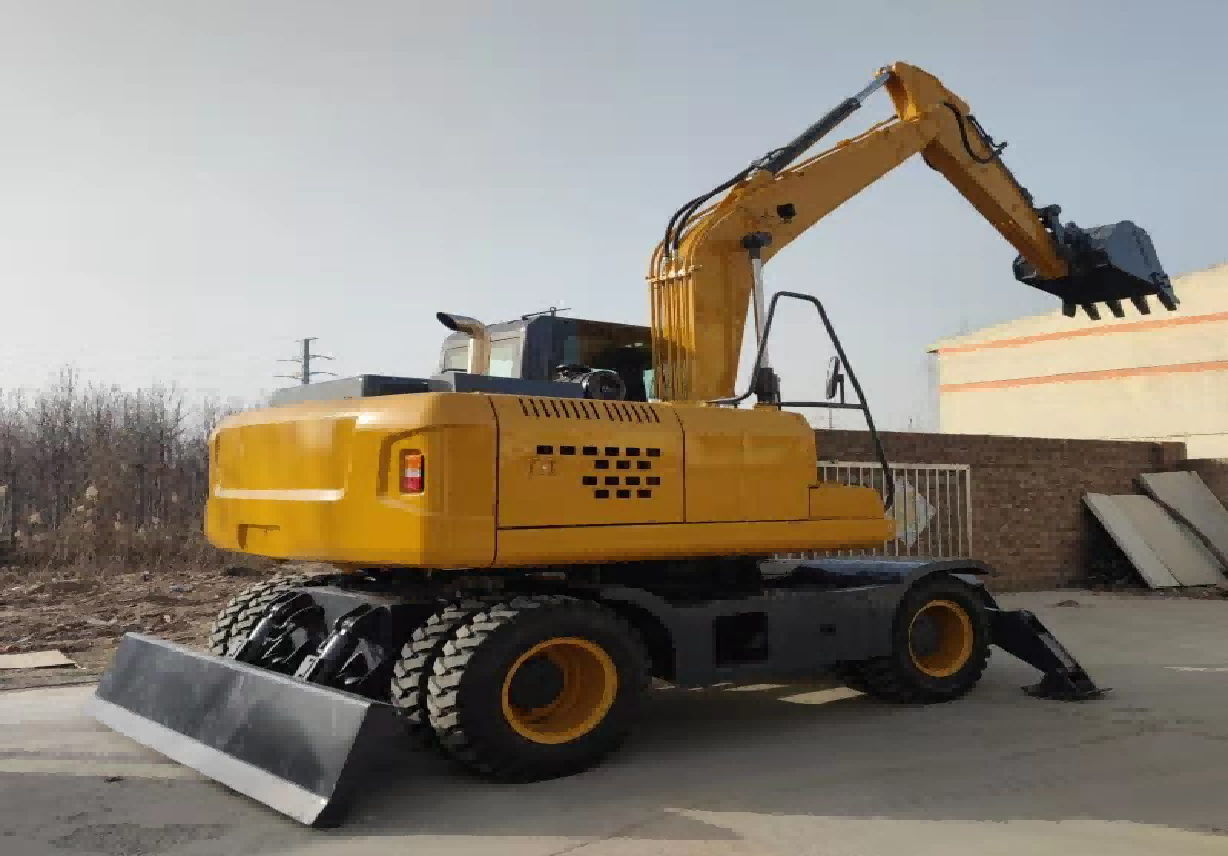

0.6Ton Wheel Excavator
Strong mobility: wheeled excavators are equipped with wheeled walking devices, driving speed, generally up to about 30km/h, convenient and fast transfer, can easily transfer between different sites, saving a lot of transportation time and cost.
Flexible operation: the 6-ton wheel excavation volume is relatively small, the body is compact, the turning radius is small, and it can be operated in a narrow space, such as on both sides of the urban road, inside the community and other places, and it can also flexibly carry out various angles of excavation, loading and unloading and other operations.
Diverse functions: Through the replacement of different accessories, such as crushing hammer, grab bucket, rotary digging drill, etc., it can achieve a variety of functions such as crushing, grasping, drilling, etc., to meet the needs of different projects such as sand farm, municipal construction, urban renovation, farmland, livestock, water conservancy and so on.
Comfortable operation: Equipped with spacious and comfortable cab, ergonomic design, such as suspension seat, large size steering wheel, extended operation handle, can effectively alleviate driver fatigue. At the same time, it is also equipped with air conditioning system, LCD display screen, etc., to improve the comfort and convenience of operation.
Product features:
Compact and flexible: the fuselage is small in size, light in weight, and can be flexibly operated in small Spaces, especially suitable for restricted Spaces such as city streets and courtyards.
Strong mobility: The wheeled walking mechanism is used, the moving speed is fast, the transfer is convenient, and the working place can be reached quickly.
Easy to operate: hydraulic control system, easy to operate and learn, even beginners can quickly get started.
Versatility: Can be equipped with a variety of accessories, such as buckets, crushing hammer, drill, etc., to achieve digging, loading, crushing, drilling and other functions.
Economical and practical: the price is relatively low, the maintenance cost is low, and the return on investment is high.
Main structure:
Engine: Provides power for excavators, usually with diesel engines.

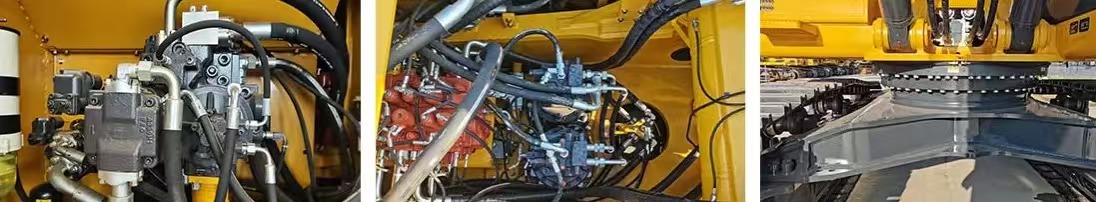

Hydraulic system: including hydraulic pump, hydraulic cylinder, hydraulic motor, etc., to provide power and control for the excavator.
Working device: including boom, bucket rod, bucket, etc., used to complete excavation, loading and other operations.
Walking mechanism: wheeled structure, usually equipped with rubber tires, can achieve fast movement.
Cab: Provides operating space for the driver, usually equipped with seats, joysticks, instrument panels, etc. screen, etc., to improve the comfort and convenience of operation.
| Basic parameters of the whole machine | Total weight | 5600KG |
| shipping length | 6346(mm) | |
| Total height during transportation | 2800(mm) | |
| Transport width | 2200(mm) | |
| Tire center distance | 2400(mm) | |
| Counterweight ground clearance | 1035(mm) | |
| umber of tires | 8-750 | |
| Boom length | 3560(mm) | |
| Stick length | 1900(mm) | |
| Max.Digging Height | 6550(mm) | |
| Max.Dumping Height | 5100(mm) | |
| Working Range | Max.Digging Depth | 3380(mm) |
| Max.Digging radius | 6590(mm) | |
| Maximum lifting height of earth shovel | 300(mm) | |
| The maximum digging depth of dozer | 100(mm) | |
| Dynamical system | Model | New Chai/Yang Move |
| power | 48/55/60KW | |
| Cooling method | water-cooling Turbo | |
| Hydraulic System | Operating Pressure | 22mpa |
| Main pump | SGP1A2XFZH9 | |
| Korea | ||
| Shape | Load Sensing System | |
| performance parameter | Bucket Capacity | 0.36m³ |
| Climbing ability | 30° | |
| Maximum digging force | 8200N | |
| Travel speed | 35KM/h | |
| Unit swing speed | 9-11r/min | |
| Hydraulic oil capacity | 90L | |
| Hydraulic tank capacity | 120L |
