Hydraulic Loader

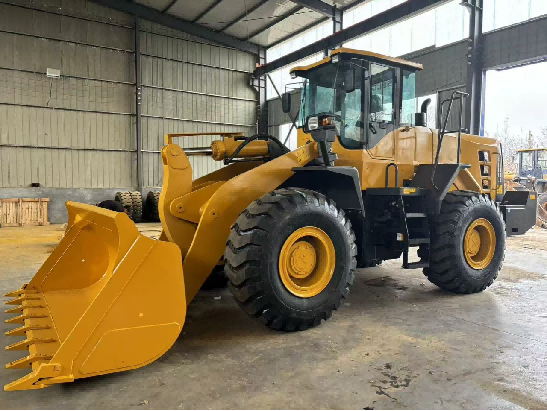

SL50 Hydraulic Loader
Powerful loading capacity: the rated load is 16 tons, the bucket capacity is large, can load a large number of materials, reduce the number of loading and unloading, improve work efficiency, especially suitable for large-scale engineering construction, mining and other places that need to deal with a large number of materials.
High efficiency: Equipped with a high-power engine and advanced hydraulic system to provide strong power output, so that the loader's working device action is fast and flexible, can quickly complete the shovel loading, handling and unloading operations, shorten the single operation cycle time, so as to complete more workload per unit time.
Good stability and safety: the use of large wheelbase, wide wheel base design, the machine center of gravity is low, good stability. In the process of loading and transporting materials, it can maintain balance and is not easy to roll over and other safety accidents. At the same time, it is equipped with perfect braking system and safety devices, such as emergency braking device, overload protection device, etc., to ensure the safety of operators and equipment.
The ability to adapt to complex conditions is strong: the tire size is large, the ground pressure is small, and it has good passability and off-road performance, and can drive and work normally under bad road conditions such as mud and rugged. In addition, the structure of the working device is strong, can withstand greater impact force, and adapt to a variety of complex material handling and handling work.
High operating comfort: The cab is spacious and comfortable, equipped with ergonomic seats, air conditioning system, good view, etc. The operator is not easy to feel tired during the long working process, and can better concentrate on completing the work and improve the quality and efficiency of the work.
Easy maintenance: The design considers the convenience of maintenance, the layout of key components such as engine and hydraulic system is reasonable, easy to access and repair. At the same time, the use of high-quality parts, high reliability, reduce the probability of failure, reduce maintenance costs and downtime.
Technical specifications | |
Engine | |
Model | CUMMINS 6CTA8.3-C215 |
weight(kg) | 780 |
Rated power/speed(kW/rpm) | 160/2200 |
maximum torque(N.m) | 843 |
emission standard | EPA Tier1 |
type | 6 |
bore(mm) | 114 |
schedule(mm) | 135 |
displacement(L) | 8.3 |
Air intake form | Turbocharging and aftercooling |
idling(rpm) | 800 |
Maximum allowable speed(rpm) | 2200 |
fuel oil | 柴油diesel |
Performance | |
Rated load | 5000kg |
Overall weight | 16500kg |
Rated bucket capacity | 3m³ |
Maximum traction force | ≥168KN |
Maximum breakout force | ≥170KN |
Maximum grade ability | 30° |
Maximum dump height | 3142mm |
Maximum dump reach | 1250mm |
Overall dimension | 8085×2963×3463mm |
Minimum turning radius | 6732mm |
Brake system | |
Service brakeService brake | Air over hydraulic disc brake on 4 wheels |
Parking brake | Manual parking brake |
Gear box | ||
Input maximum power | 162KW | |
Enter the maximum speed. | 2200R/MIN | |
Maximum input torque | 843N.M | |
Torque converter type | Two-stage and four-element (double turbine) | |
Maximum pitch ratio of torque converter | ≥4 | |
Gearbox form | Two front and one reverse/power shift, planetary structure | |
Mechanical reduction ratio of transmission | 1st gear | 2.155 |
2st gear | 0.578 | |
reverse gear | 1.577 | |
Output transmission ratio of power take-off | Variable speed pump, working pump | 1 |
steering pump | 1.167 | |
Working oil pressure | 1.1-1.5MPA | |
Torque converter inlet oil pressure | 0.40-0.55MPA | |
Torque converter outlet oil pressure | 0.20-0.45MPA | |
Lubricating oil pressure | 0.10-0.20MPA | |
Maximum allowable humidity at the outlet of torque converter | 120℃ | |
Hydraulic system | ||
System working pressure | 18MPa | |
Boom lifting time | ≤5.1s | |
Total time | ≤9.3s | |
Fuel tank capacity | 260L | |
Hydraulic tank capacity | 300L | |
Function of leveling automatically | Yes |
