Product Details

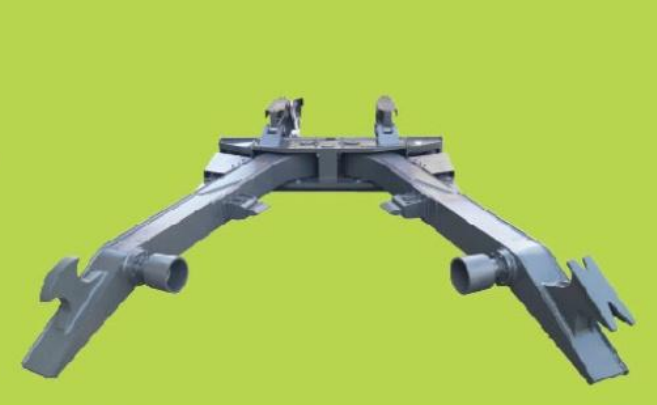

Applicable object:
Dismantling auxiliary equipment.Main features: NM500 steel, light weight and wear-resistant;The oll cylinder adopts honing tube, imported HALLiTE oll seal, short working cycle and long life.
Double Acting Clamping Arm | Single Acting Clamp Arm | ||||
Item/Model | Unit | JFCA15D | JFCA20D | JFCA15S | JFCA20S |
Suitable Excavator | ton | 9-16 | 17-25 | 9-16 | 17-25 |
Weight | kg | 2800 | 3200 | 2100 | 2800 |
Maximum Opening | mm | 3800 | 3600 | - | - |
Maximum Height | mm | 2200 | 2600 | 2000 | 3000 |
Rated Pressure | bar | 250 | 280 | 280 | 250 |
Rated Flow | lpm | 220 | 220 | 120 | 120 |
Opening Cycle | sec | 2.1 | 2.9 | - | - |
Closed Cycle | sec | 2.3 | 2.7 | - | - |
