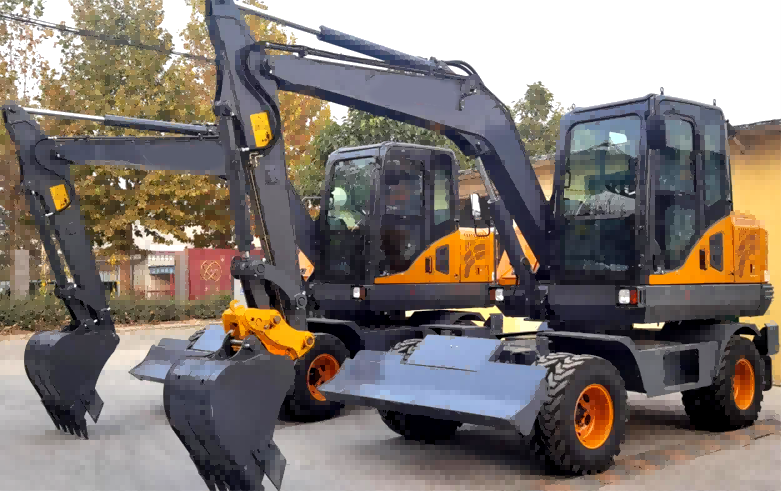

0.8Ton Wheel Excavator
Flexible steering!
versatility!
Good off-road performance!
Strong mobility: wheeled excavators are equipped with wheeled walking devices, driving speed, generally up to 30km/h or more, can be quickly transferred between different sites, saving transportation costs and time, especially suitable for long-distance movement in urban roads, highways and other environments.
Flexible operation: with a small turning radius and flexible operation performance, it can work in narrow Spaces, such as urban streets, residential areas, small construction sites, etc., and can adapt to a variety of complex terrain and working conditions.
Versatility: Through the replacement of different working devices, such as buckets, crushing hammers, wood grabbers, clamps, etc., to achieve mining, crushing, grasping, loading and unloading and other operational functions to meet the needs of different projects.
Good comfort: the cab is usually equipped with comfortable seats, air conditioning system, good vision, etc., the operating environment is more comfortable, reducing the fatigue of the operator and improving the work efficiency.
Easy maintenance: The structure of the wheeled excavator is relatively simple, the maintenance and replacement of some components is more convenient, and the maintenance cost of the tire is lower than that of the track, reducing the overall maintenance cost of the equipment.
Engine model | A498BZG | Engine power | 48/2300(KW/rpm) |
Weight of the whole machine | 8050kg | Bucket capacity | 0.30m³ |
Total length of transportation time | 6300mm | Sleeve length | 3500mm |
The total height of transportation: | 2930mm | Length of the bucket rod: | 1800mm |
Width of the whole machine: | 2200mm | Height of bulldozer: | 500mm |
Width of the turn table: | 1940mm | Width of bulldozer: | 2140mm |
Wheelbase: | 2360mm | Lifting height of bulldozer: | 380mm |
Wheelbase: | 1680mm | Bulldozer branch height: | 80mm |
Tail rotation radius: | 1860mm | Leg clearance from the ground: | 280mm |
Ground clearance of counterweight: | 1000mm | Minimum ground clearance: | 240mm |
Hydraulic fuel tank capacity: | 130L | Fuel tank capacity: | 120L |
Maximum excavation radius: | 6400mm | Maximum excavation height: | 7100mm |
