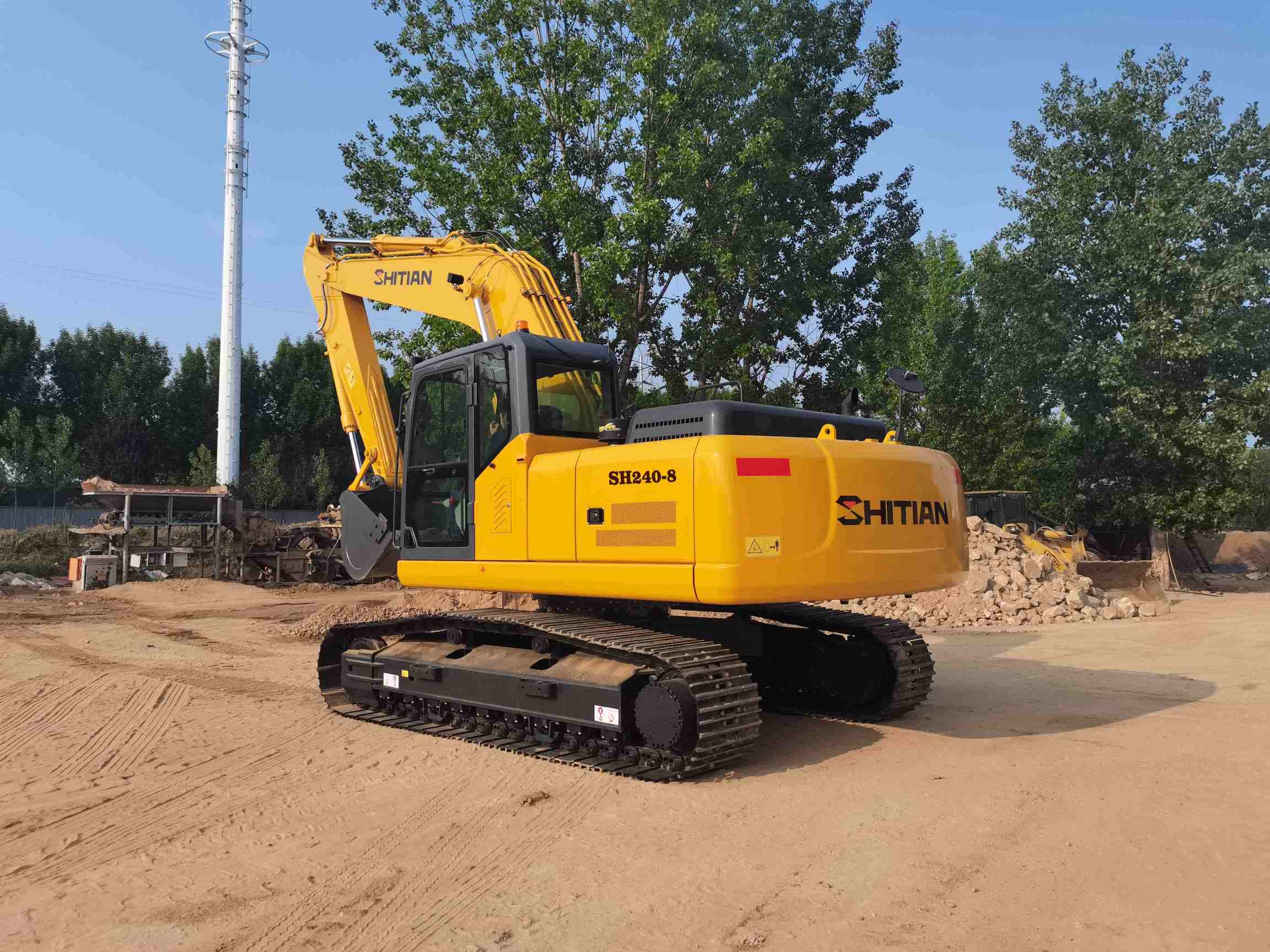

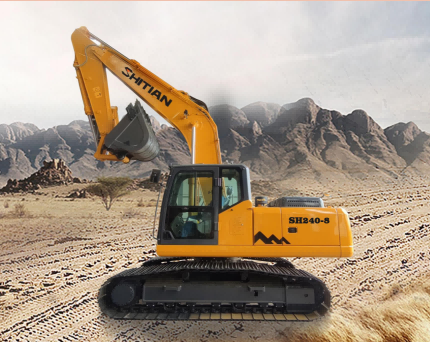

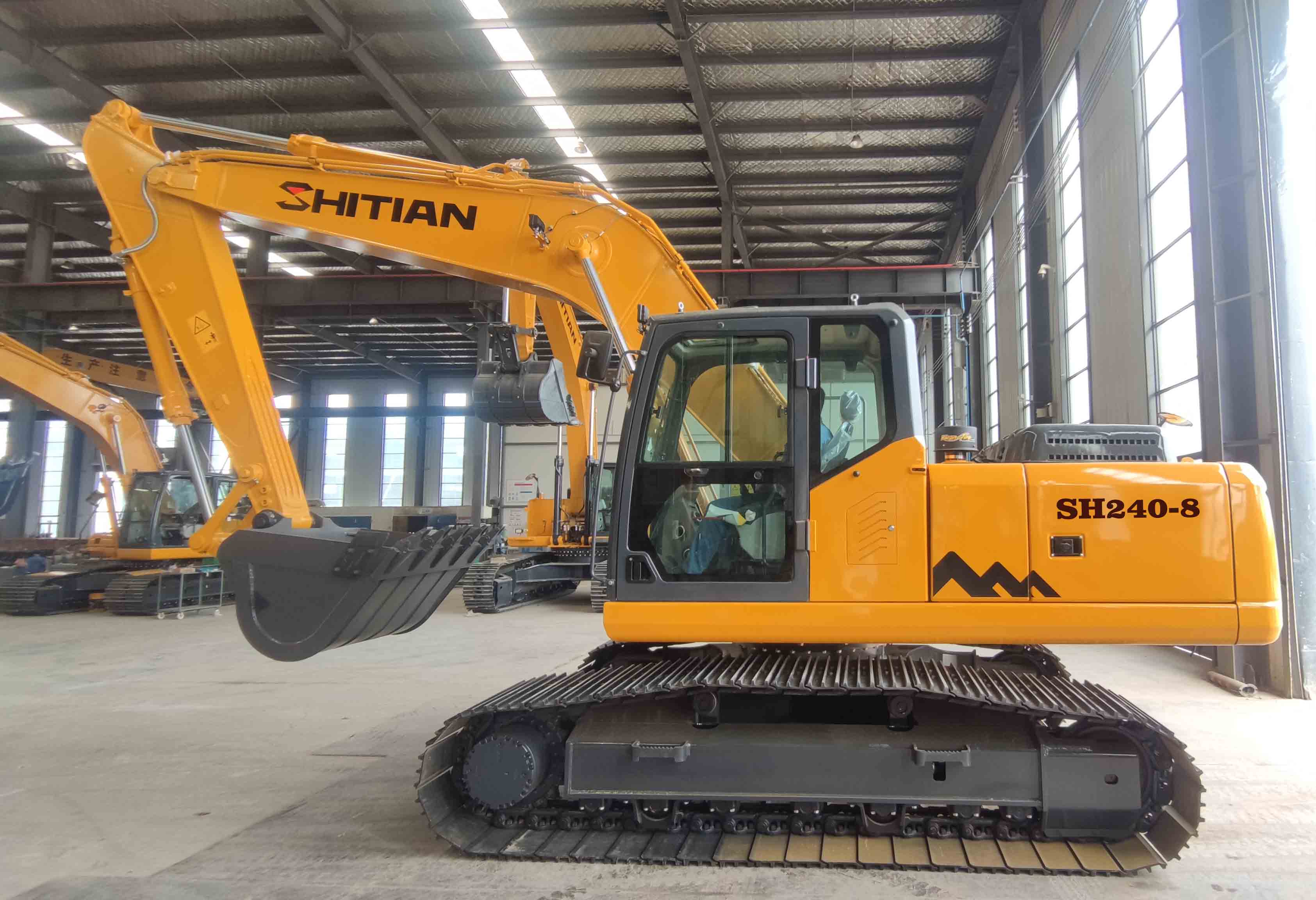

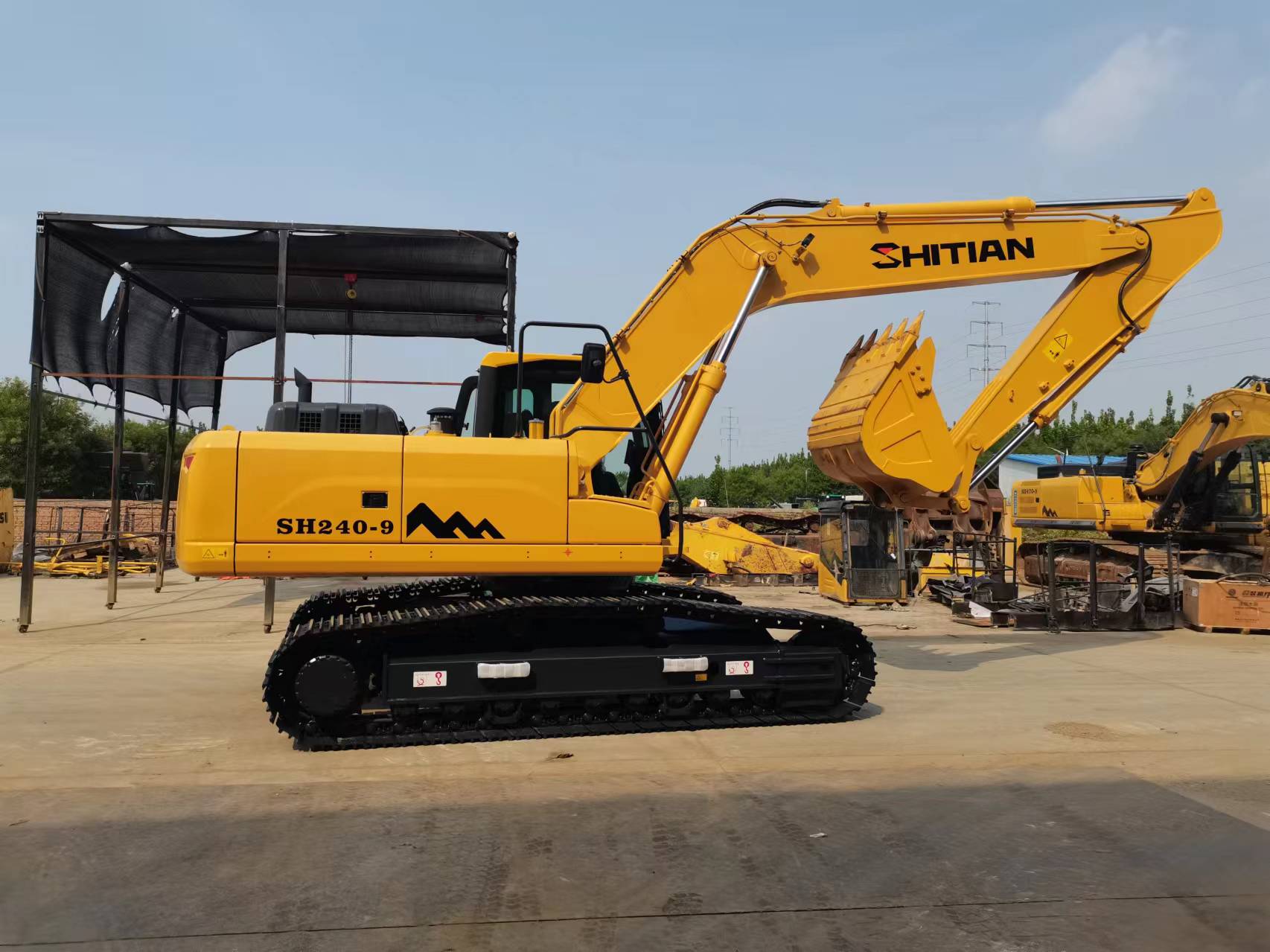

24-ton Medium-sized Excavator
This 24-ton medium excavator delivers powerful performance and is adaptable to high-altitude and extreme working conditions. Its stress-resistant structure and high-flow hydraulic system provide up to 146 kN of bucket digging force, increasing crushing and excavation efficiency by over 15%. It ensures high productivity and low energy consumption even in challenging conditions such as hard soil and soft rock.
This 24-ton medium-sized excavator is powerful: it is equipped with a Cummins 6BTAA high-power engine with a rated power of 133kW, which can output strong power and torque, providing sufficient power for the excavator and enabling it to easily handle various complex
Advanced production management team, industry management experience of more than 15 years, to ensure the assembly qualityworking conditions, such as digging hard soil and rocks.
Outstanding excavation capability: With a bucket capacity of 1.2 cubic meters, the large bucket capacity and powerful excavation force can grasp more materials in each excavation operation, improving work efficiency. Whether it is large-scale earthwork projects or precise excavation operations in confined Spaces, it can complete tasks well.
High working efficiency: The rotary speed is 12.4rpm, and the walking speed is 5.1/3.1Km/h. The relatively fast rotary and walking speeds reduce the waiting time during the working process. It can quickly move and adjust the working position between different working points, thereby improving the overall working efficiency.

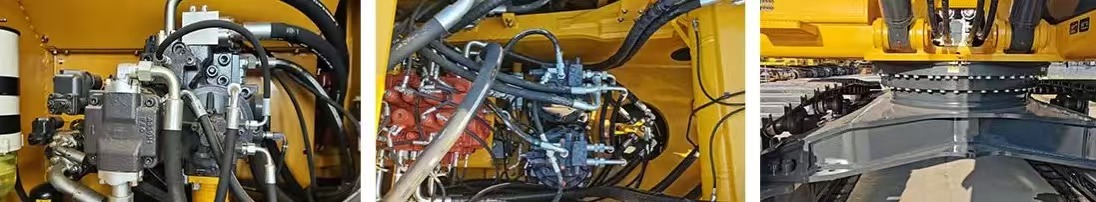

Good stability: The whole machine has a solid structure, featuring large box boom, bucket rod, reinforced rotating platform, high-strength chassis and other designs, which enhance the stability and reliability of the entire machine. It can maintain a good working condition in harsh working environments, reduce downtime caused by equipment failure, and lower maintenance costs.
High operational comfort: Equipped with a spacious and comfortable cab, the operation handle of the excavator is designed in accordance with ergonomic principles, making the operation light and flexible. This can effectively reduce the labor intensity of the operator and improve the comfort and safety of the work.
Strong versatility: By selecting different working devices and accessories, such as breakers, soil looseners, and quick-change devices, it can achieve multiple functions including excavation, crushing, soil loosening, and loading and unloading, making it a multi-functional machine that can meet the needs of various engineering scenarios and improve the utilization rate and economy of the equipment.
Energy conservation and environmental protection: The engine adopts advanced combustion technology and emission control technology, meeting relevant national emission standards. Some models also use energy-saving control technology, which not only protects the environment but also reduces the user's operating costs.
Performance Parameters:
Weight(T) | 22300 |
Bucket capacity(m3) | 1.2 |
Engine model | 6BTAA5.9 |
Power(kw/r/min) | 133/2000 |
Fuel tank volume(L) | 330 |
Traveling speed(km/h) | 5.1/3.1 |
Turning speed(r/min) | 11.4 |
Climbing capacity(%) | 70 |
Bucket digging force(KN) | 146 |
Bucket length(mm) | 2925 |
Ground pressure(KPa) | 49.8 |
Hydraulic oil tank volume(L) | 250 |
Dimensional parameters:
A-Total length (mm) | 9625 |
B-Ground clearance of counterweight (mm) | 4915 |
C-Overall height (top of arm) (mm) | 3075 |
D-Overall width (driver's top) (mm) | 2800 |
E-Overall height（to cab top）(mm) | 3055 |
F-Counterweight ground clearance(mm) | 1075 |
G-Min.ground clearance (mm) | 468 |
H-Tail slewing radius (mm) | 2925 |
J-Track length (mm) | 4260 |
K-Track to track distance (mm) | 2380 |
L-Track width (mm) | 2800 |
M-Track plate width (mm) | 600 |
O-Hood height(mm) | 2395 |
P-Slewing platfoem width(mm) | 2725 |
Q-Distance from the center of rotation to the rear end(mm) | 2920 |
Scope of operation:
A-Maximum excavation height (mm) | 10095 |
B-Maximum unloading height (mm) | 7190 |
C-Maximum excavation depth (mm) | 6490 |
D-Maximum vertical wall digging depth (mm) | 5915 |
F-Maximum excavation range (mm) | 9860 |
G-Maximum digging distance in ground plane (mm) | 9675 |
H-Minimum swing radius of working device (mm) | 2970 |
Company Strength:
Shandong Shitian Heavy Industry Co., Ltd (Jining Shan re-energy) is located in Jining City, Shandong Province, high-tech zone technology industrial development zone. It is a high-tech enterprise specializing in the research, development and production of large excavators. For the large energy-saving excavator design, research and development and production of the leader, the development of hybrid large excavator SH520-9 energy-saving effect reached more than 30%.
In 2020, Jining Shan re-energy hybrid excavator production base project into the key support projects in Shandong Province, its conventional products SH380-9 using a full set of German Linde hydraulic system, strong digging performance, upholding the German industrial products, reliable and efficient design and manufacturing concepts; SH470-9, SH500-9, SH600 in the mines, highways, quarry conditions after decades of verification, known for high efficiency, energy saving The SH470-9, SH500-9, SH600 have been proven in mining, highway and quarry conditions for decades and are famous for high efficiency and energy saving.
FAQ
Q: How can I obtain the latest product information and quotation?
A: You can download electronic brochures from the product center on our official website, or contact our local distributors and sales representatives. They will provide you with the most up-to-date and accurate materials and quotations based on your needs.
Q: What attachments can be configured?
A: Dozens of attachments can be configured, including breakers, hydraulic shears, compactors, grapples, dredging buckets, etc., enabling multi-purpose use with a single machine. Our pre-optimized hydraulic system ensures easy compatibility with various attachments.
Q: Is the excavator equipped with a quick coupler by default?
A: Most models can be factory-equipped or come standard with a hydraulic quick coupler, allowing for fast, safe, and convenient attachment changes without manual intervention.
