Product Details
Applicable objects:

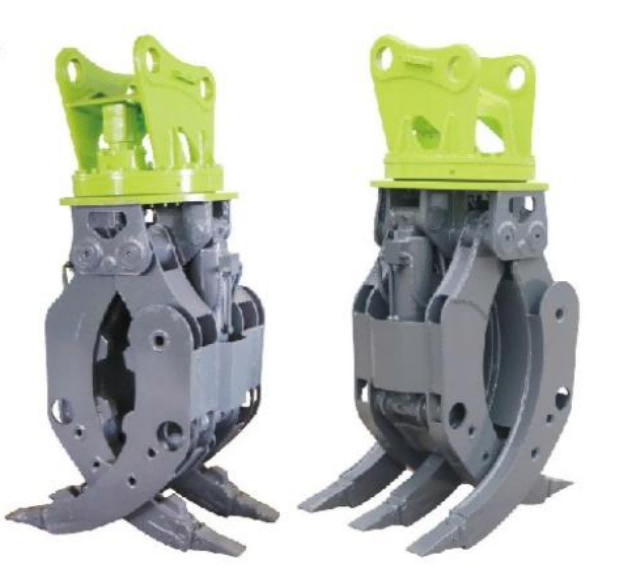

Simple soil loosening, cleaning debris, loading and unloadingMain features: NM400 steel, light weight and wear-resistant;The pin is made of 42Crvo alloy steel, with built-in oil passage, high strength and good toughness;Rotary motor imported from Switzeriand;Use vertical car motor rotation system, 360 "rotation, with car brake function;The oil cylinder adopts honing tube, imported HALLITE oil seal, short working cycle and long life;The teeth are made of manganese molybdenum alloy material, which is durable.
Item/Model | Unit | JFSR02CA | JFSR04CA | JFSR06CA | JFSR08CA | JFSR10CA | JFSR14CA |
| Suitable Excavator | ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 |
| Weight | kg | 360 | 440 | 900 | 1850 | 2130 | 2600 |
Max Jaw Opening | mm | 1200 | 1400 | 1600 | 2100 | 2500 | 2800 |
Working Pressure | bar | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 |
| Set Up Pressure | bar | 170 | 180 | 190 | 200 | 210 | 250 |
| Working Flow | lpm | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 |
| Cylinder Volume | ton | 4.0*2 | 4.5*2 | 8.0*2 | 9.7*2 | 12*2 | 12*2 |
