1.7 Ton Mini Excavator
Designed for municipal, landscaping, and agricultural applications, this 1.7-ton compact excavator combines a narrow 1-meter body width with 360° rotation, making it ideal for working in confined spaces with minimal environmental disruption. Equipped with a fuel-efficient and low-noise Stage III diesel engine, it delivers both economy and high performance. The standard quick coupler enables fast switching among buckets, rakes, hydraulic breakers, and other attachments, supporting versatile tasks such as digging, transplanting, trenching, and backfilling. Suitable for road maintenance, tree moving, irrigation projects, and field preparation, it is an efficient and flexible partner for modern precision operations.
Operational ability
Moderate excavation capacity: The 1.7 Ton Mini Excavator can meet the requirements of small-scale excavation tasks. The bucket capacity is 0.05m³, which can handle the excavation of ordinary soil.
Flexible working range: The compact body can operate in narrow Spaces, such as interior decoration, garden path excavation, small pipe laying, etc., and can also work in low Spaces like orchards and greenhouses without damaging the surrounding crops or facilities.
Business performance
Easy to operate: The operating room design is humanized. The handle is lightweight, the control is accurate, the labor intensity is reduced, and it is convenient for beginners to use.
Flexible mobility: Tracked or wheeled walking devices, flexible steering, and the tracked type can also adapt to complex terrains such as mountains and muddy ground, and can further adapt to narrow Spaces.
Transportation and transfer
Easy to transport: The whole machine weighs 1950KG and can be transported by a small trailer or pickup truck without the need for large transportation equipment, reducing transportation costs and difficulty, and facilitating transfer.
Good passability: 1.2 meters wide and 2.3 meters high, it can easily enter small construction sites through narrow passages and low doors.
Power and economy
Reasonable power matching: The power of the equipped engine is generally 14.6 kilowatts, and the power output is highly matched with the weight and operational requirements of the entire machine.
Good fuel economy: The optimized engine design results in a relatively small workload, low fuel consumption, and can effectively reduce operating costs.
Maintenance
Convenient for daily inspection: The layout of components such as the engine compartment and hydraulic system is compact and reasonable. It is convenient to check the liquid level, filter element, belt and other components, and daily maintenance is simple.
Strong versatility of accessories: The common 1.7-ton excavator accessories on the market have high versatility, are easy to purchase, and have low maintenance time and cost.
Product model | SH17 | |
Total weight | kg | 1750 |
Bucket capacity | m³ | 0.05 |
Engine | ||
Engine model | / | 3TNV80F-SPSY3 |
Intermittent spray | √ | |
4-stroke | √ | |
Water cooled | / | √ |
No.of cylinders | 3 | |
Rated power | kW/rpm | 14.6/2400 |
Displacement | L | 1.267 |
Oil Capacity | ||
Fuel tank | L | 21 |
Hydraulic tank | L | 15 |
Engine oil | L | 3.4 |
Hydraulic System | ||
Rated fowof main pump | L/min | 64 |
Pressure-main valve | MPa | 21.6 |
Pressuretravelsystem | MPa | 21.6 |
Presure swing system | MPa | 11 |
Pressure pilot system | MPa | 3.9 |
Main Performance | ||
Travel sped (hgh/low | km/h | 4.2/2.1 |
Swing speed | r/min | 9.1 |
Gradeability | 0 | 30 |
Ground pressure | kPa | 32.6 |
Bucket diggingforce | kN | 15.2 |
Arm digging force | kN | 8.8 |
Max.traction force | kN | 19.5 |
Standard | ||
Boom length | mm | 1825 |
Arm length | mm | 950 |
Bucket capacity | m³ | 0.05 |

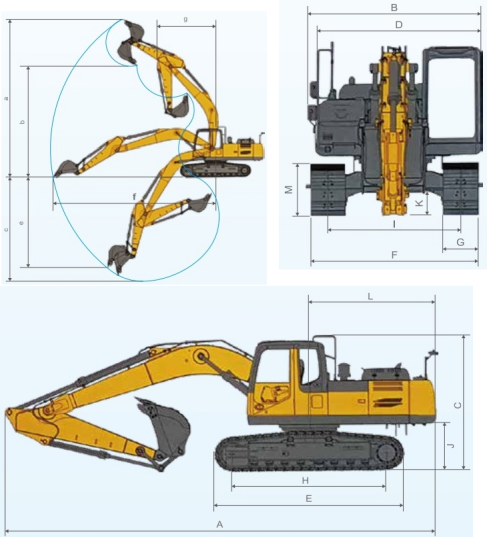

Working Ranges (mm) | |||
a | Max.digging height | 3565 | |
b | Max dumping height | 2460 | |
C | Max.diggingdepth | 2305 | |
e | Max.vertical wall igging depth | 2050 | |
f | Max.digging reach on ground | 3935 | |
g | Min.swing radius | 1530 | |
Dimensions(mm) | |||
A | Overall length | 3560 | |
B | Overall width | 990/1280 | |
C | Overall height | 2360 | |
D | Overallwidthof uperstnucture | 990 | |
E | Track length | 1585 | |
F | Chassis width | 990/1280 | |
G | Track shoe width | 230 | |
H | Tracklength on ground | 1230 | |
I | Track gauge | 760/1050 | |
J | Counterweight clerance | 495 | |
K | Min.ground clearance | 150 | |
L | Min.talsingradius | 640 | |
M | Track height | 395 | |
