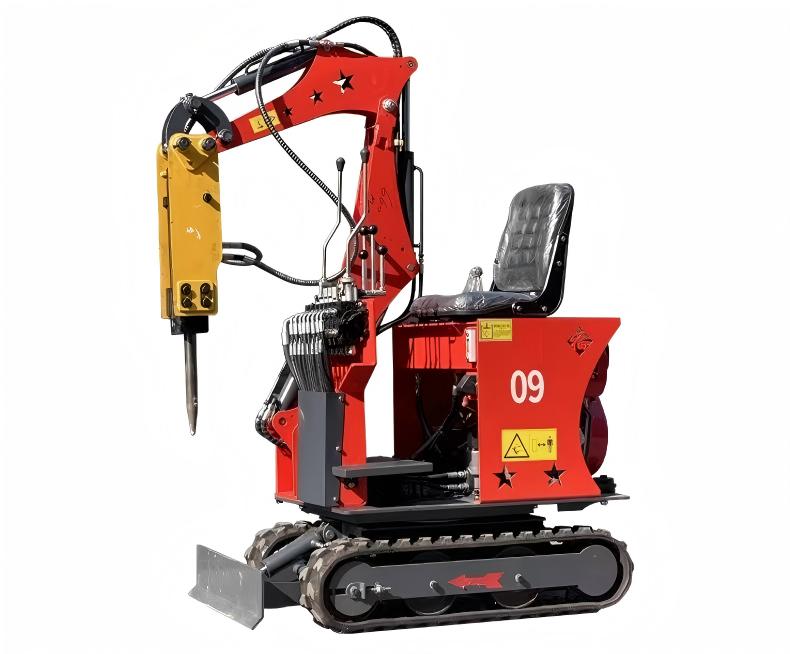

1 Ton Remote Control Mini Excavator
With its unique design and advanced technology, the 1-ton remote-controlled mini excavator has demonstrated significant advantages in many fields
First, ease of operation

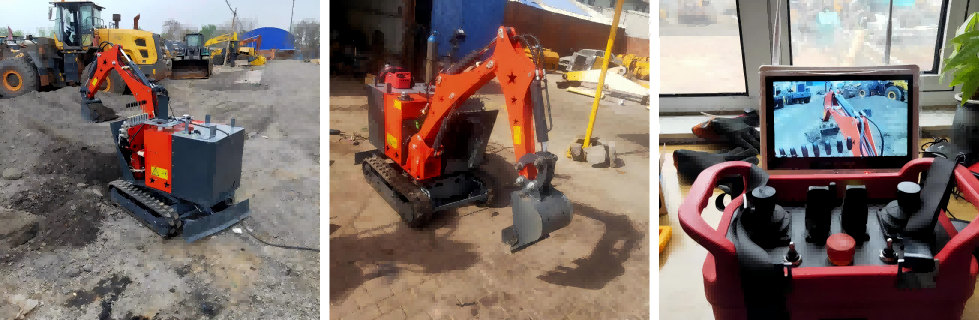

Remote control : wireless remote control technology to achieve remote operation, reduce manual labor intensity, especially suitable for dangerous or complex environment .
Intelligent interaction : equipped with intelligent CPU microcomputer technology, real-time monitoring of equipment working conditions and fault alarm, improve operation safety .
Second, flexible operation ability
Strong adaptability to small space : tailless rotating design to achieve 360° flexible steering, suitable for indoor, orchards, greenhouses and other narrow areas .
Rapid transfer transportation : lightweight design (1 ton) easy to transport ordinary vehicles, reduce moving costs .
Third, performance and function expansion

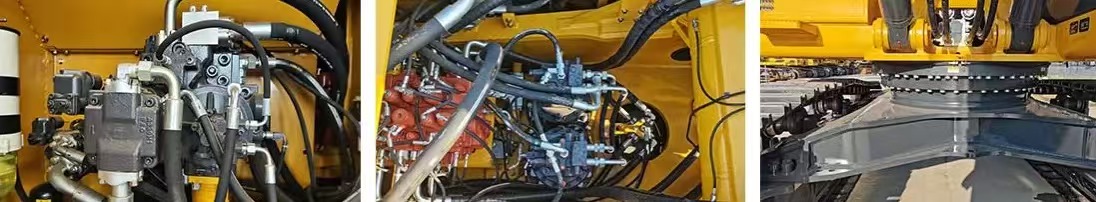

Efficient hydraulic system : full power variable control system is adopted to ensure strong mining force and accurate operation, and work efficiency is increased by more than 30% .
Multi-functional support : can quickly replace the crushing hammer, grab, rotary digging drill and other accessories to meet the needs of earthmoving cleaning, crushing, loading .
Fourth, environmental protection and economy
Low energy consumption design : electric model with ternary lithium battery, battery life 4-6 hours, support home power charging, no emission pollution ; Fuel model fuel consumption is 20% lower than traditional equipment .
Low maintenance cost : high universality of parts, convenient maintenance, long-term use cost is only 1/3 of large equipment .
5. Safety and durability
Emergency protection mechanism : equipped with automatic engine flameout device and pressure compensation system to avoid equipment overload damage .
High strength structure : surface spraying process and imported Eaton walking system to ensure stability and durability under harsh working conditions .
These advantages make it an efficient solution for municipal engineering, agricultural planting, landscaping and other scenarios.
Excavator parameter | |
Specification | Main parameter |
Working weight | 900KG |
Length, width and height | 1500*680*1950MM |
Bucket capacity | 0.02M3 |
Bucket width | 300MM |
Boom length | 1050MM |
Rod length | 850MM |
Climbing ability | 35° |
Maximum excavation height | 2450MM |
Maximum digging depth | 1200MM |
Maximum loading and unloading height | 1750MM |
Chassis width | 680MM |
Track plate width | 150MM |
Track grounding length | 950MM |
Travel speed | 3KM/H |
Rotation Angle | 360° |

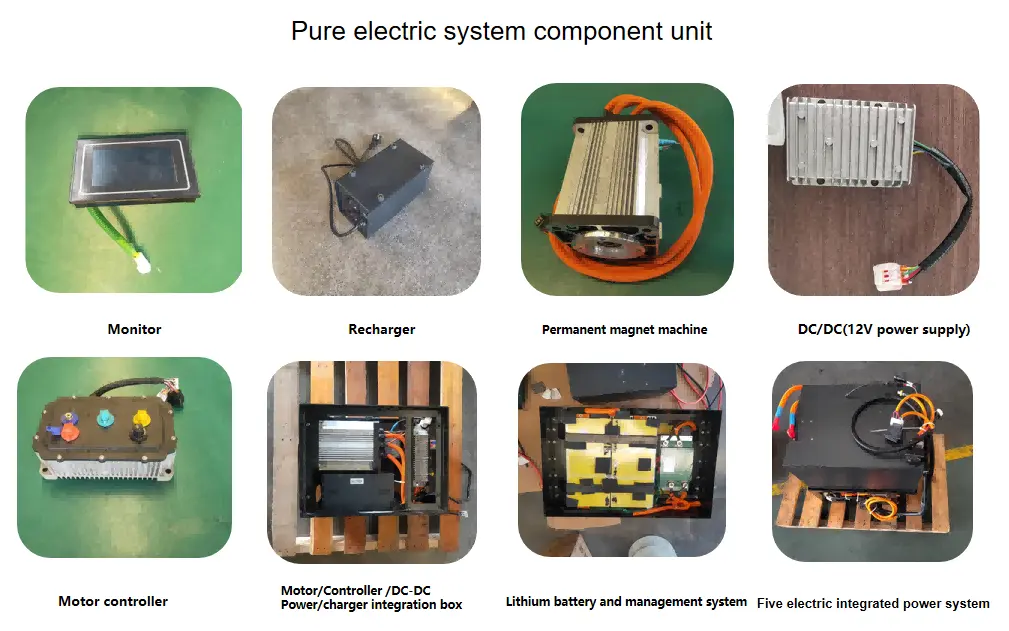

Electrokinetic system parameter | |
Motor | Permanent magnet synchronous motor |
Motor weight | 20Kg |
Rated power | 8.5KW/2000rpm |
Peak power | 15KW |
Rated torque | 49N·m |
Maximum speed | 2000r/min |
Power battery | Ternary lithium battery |
Nominal voltage | 144V |
Nominal capacity | 150A·h |
Total battery capacity | 15/22KW·h |
