Product Details
Parameter introduction of 1.8-ton Mini Excavator

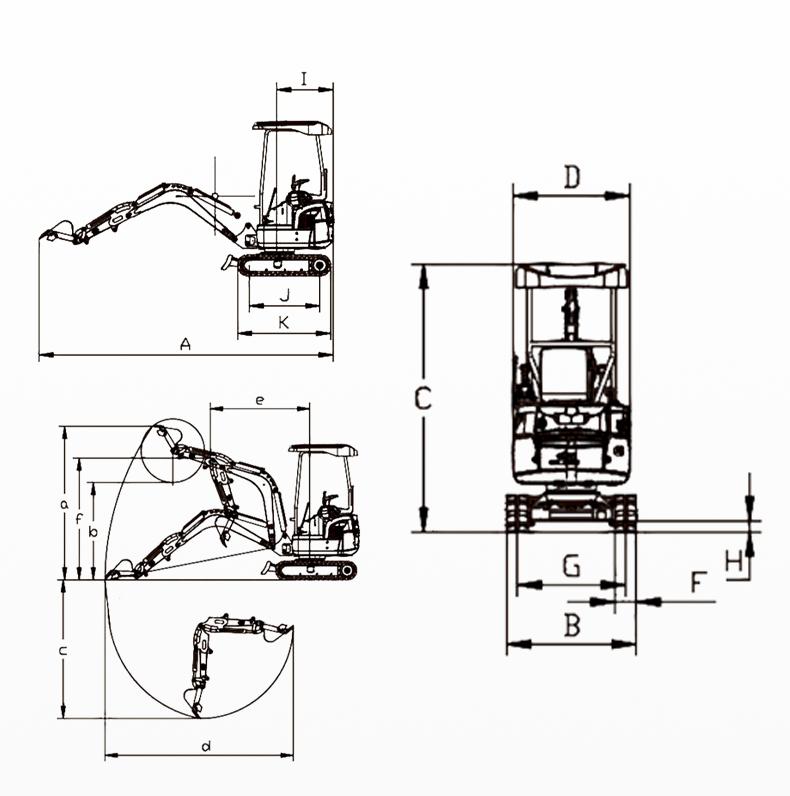

| Parameter Details(mm) | |
| Overal legnth A | 4325/1655 |
| Overall width B | 1100 |
| Upper width D | 990 |
| Overall height C | 2272 |
| Standard track shoe width F | 200 |
| Track Gauge G | 920 |
| Min.ground clearance H | 119 |
| Tail turning radiusl | 790 |
| Track ground length J | 1050 |
| Track length K | 1545 |
| Working Range(mm) | |
| Max digging height a | 2580 |
| Max.unloading height b | 1637 |
| Max.digging depth c | 2060 |
| Max.digging distance d | 3160 |
| Min.turning radiuse | 1711 |
| Max.height at minimum turning radiusf | 2048 |
| Boom swing Angle(left)° | 75 |
| Boom swing Angle(right)° | 45 |
Performance parameter | |
| Working weight(kg) | 1800KG |
| Bucket capacity m³ | 0.03 |
| Power | 10.2KW/14KW |
| Swing speed | 12RMP |
| Gradeability | 30 |
| Main parts | |
| Engine | KUBOTA D722;KOOP 292 |
| Main valve | BEIFANG |
