5Ton Skid Loader

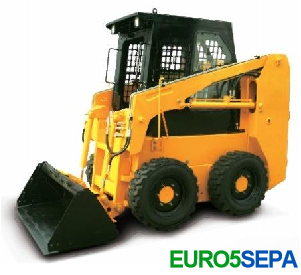

NS35 Skid Loader

Flexible steering!

versatility!

Good off-road performance!


Contact Now E-Mail Telephone
Product Details

Performance Characteristics

Powerful Performance: Fitted with a high-performance engine, Slip Loader boasts a significant power output. It can effortlessly undertake a diverse range of tasks, including digging, scooping, and maneuvering. The hydraulic system is seamlessly integrated with the engine, guaranteeing efficient energy transmission and boosting the overall work productivity.

Agile Maneuverability: Employing skid steer technology, the machine enables a small turning radius and allows for agile operation even in restricted spaces. This makes it an excellent choice for material handling and equipment installation in narrow areas like urban streets, workshops, and warehouses. Moreover, the short wheelbase and compact structure further enhance its maneuverability in tight spots.

Superior Stability: Thanks to an optimized wheelbase ratio of roughly 1.4:1, Slip Loaderoffers exceptional stability. It can maintain balance during movement and operation, thus reducing the likelihood of tipping over and ensuring safe operation. The low center of gravity also plays a crucial role in enhancing its stability.

Operator-Friendly Comfort: Slip Loader is equipped with a comfortable cabin that has been designed with ergonomic principles in mind. The adjustable seat can accommodate operators of different builds, minimizing fatigue during long working hours. The wide viewing angle of the cabin enables operators to have a clear view of the work area, improving both the operational precision and safety.

Convenient Maintenance: The engine compartment is carefully arranged, providing easy access to key components, which simplifies daily inspections, maintenance, and repairs. The hydraulic system's filters, oil lines, and other components are strategically placed, making tasks such as filter replacement and oil line repairs more straightforward. This design effectively reduces maintenance costs and downtime.

Model
NS35
Rated loadkg500
Tipping loadkg1000
Bucket capacity0.25
Operating Weightkg2200
Max.travel speedkm/h12
Hydraulic pump flowL/min75
Fuel tank capacityL60
Tire type
8.5-15NHS
Dimensionsmm2950×1350×2000



Max.Operating heightmm3300
Hinge pin heightmm2725
Width with bucketmm1400
Track widthmm1080
Wheelbasemm897
Ground clearancemm150
Dumping angle
40
Dumping heightmm2050
Dumping reachmm790
Engine Maker/Model
XinChai C490BPG
Power/Rotate speed
36.8KW(50HP)/2650rpm
Type
Water cooled,4 stroke
DisplacementL2.27
Standard configuration
Open-type cab


Mechanical type
Options
Mitsubishi/Yanmar engine

Starting assist system

Pilot control

Air conditioning
