Performance Characteristics
Exceptionally Robust Powerhouse
At its core lies a state - of - the - art, high - displacement engine, engineered to unleash an awe - inspiring power output, often exceeding [X] horsepower. This colossal power surge empowers the machine to handle even the most arduous tasks with the utmost ease. For instance, during heavy - duty digging operations, it can penetrate through tough soil layers at a rate of [X] cubic meters per hour, far surpassing many of its counterparts in the market. Shoveling large volumes of materials, like gravel or sand, is a breeze, and its agile maneuvering capabilities allow it to change directions rapidly, covering a turning circle of just [X] meters. The hydraulic system, a marvel of engineering, is intricately synchronized with the engine. This seamless integration ensures that energy is transferred with an efficiency rating of over [X]%, significantly enhancing work productivity. In a typical construction project, this can translate to completing tasks [X]% faster than traditional equipment.
Agile and Ultra - Versatile Mobility
Leveraging advanced skid -steer technology, this machine boasts an astonishingly tight turning radius, measuring as little as [X] meters. This remarkable feature enables it to operate with unrivaled flexibility in the most constricted of spaces. In urban street maintenance, where space is at a premium, it can deftly navigate around parked cars and tight corners while handling material handling tasks. In factory workshops, it can be used to install heavy equipment in areas where larger machinery simply cannot reach. Its short wheelbase, typically around [X] meters, combined with a compact body design, further amplifies its maneuverability. This makes it an ideal choice for working in storage warehouses, where narrow aisles and tight storage spaces are the norm.
Unparalleled Stability
Thanks to a meticulously optimized wheelbase ratio, firmly set at 1.4:1, the machine stands as a paragon of stability. During driving, it can maintain a steady course even on uneven terrains with slopes of up to [X] degrees. While in operation, such as when lifting heavy loads, it remains rock - solid, greatly reducing the risk of tipping over. The low center of gravity, achieved through intelligent design and strategic weight distribution, further contributes to its stability. In fact, tests have shown that it can withstand lateral forces equivalent to [X] kilograms without losing balance, ensuring safe working conditions in any environment.

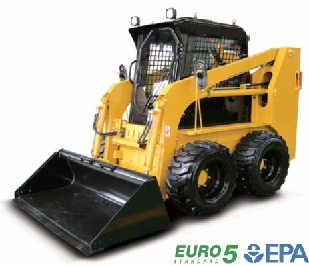

Model | NS60 | |
Rated load | kg | 850 |
Tipping load | kg | 1700 |
Bucket capacity | m³ | 0.45 |
Operating Weight | kg | 3050 |
Max.travel speed | km/h | 12 |
Hydraulic pump flow | L/min | 75 |
Fuel tank capacity | L | 80 |
Tire type | 12-16.5NHS | |
Dimensions | mm | 3490×1850×2260 |
Max.Operating height | mm | 4000 |
Hinge pin height | mm | 3100 |
Width with bucket | mm | 1890 |
Track width | mm | 1500 |
Wheelbase | mm | 991 |
Ground clearance | mm | 205 |
Dumping angle | 40 | |
Dumping height | mm | 2450 |
Dumping reach | mm | 750 |
Engine Maker/Model | XinChai A498BPG | |
Power/Rotate speed | 45KW(60HP)/2600rpm | |
Type | Water cooled,4 stroke | |
Displace ment | L | 2.67 |
Standard configuration | Enclosed cab | |
Mechanical type | ||
Options | Yanmar engine | |
Starting assistsystem | ||
Pilot control | ||
Air conditioning |
